18 Tower

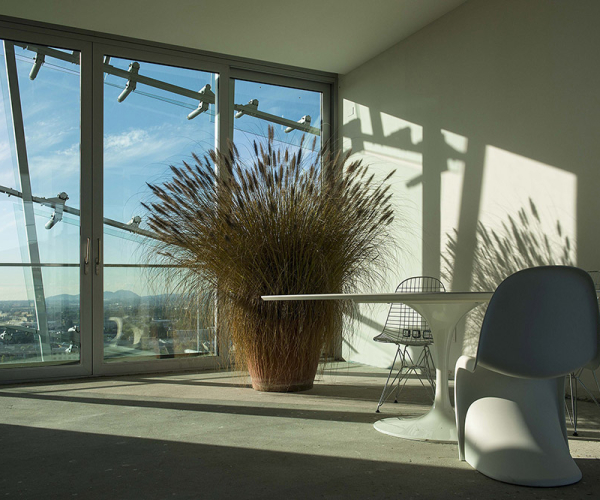

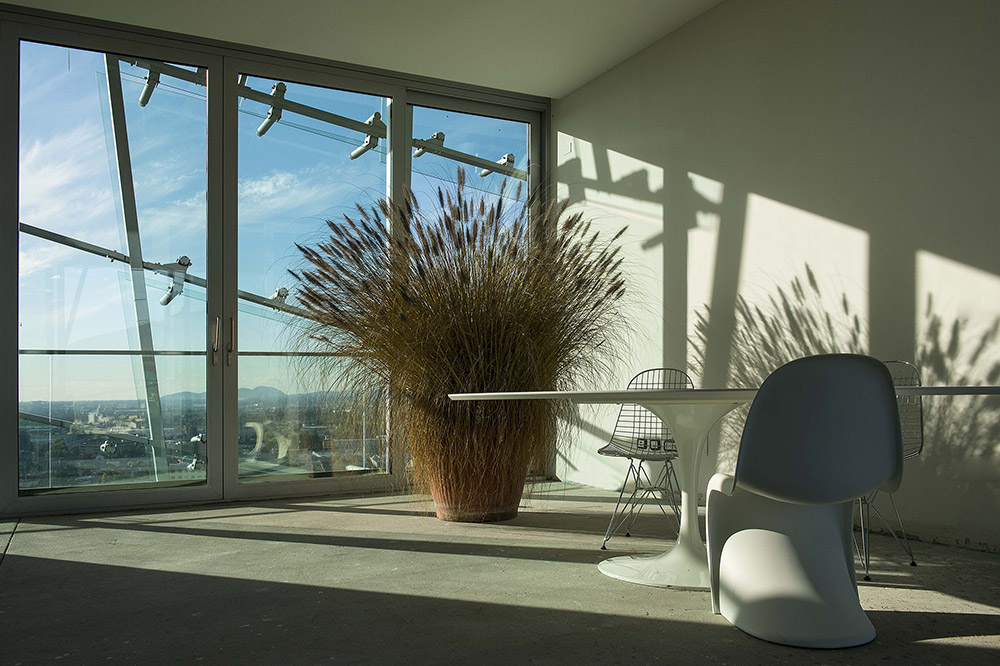

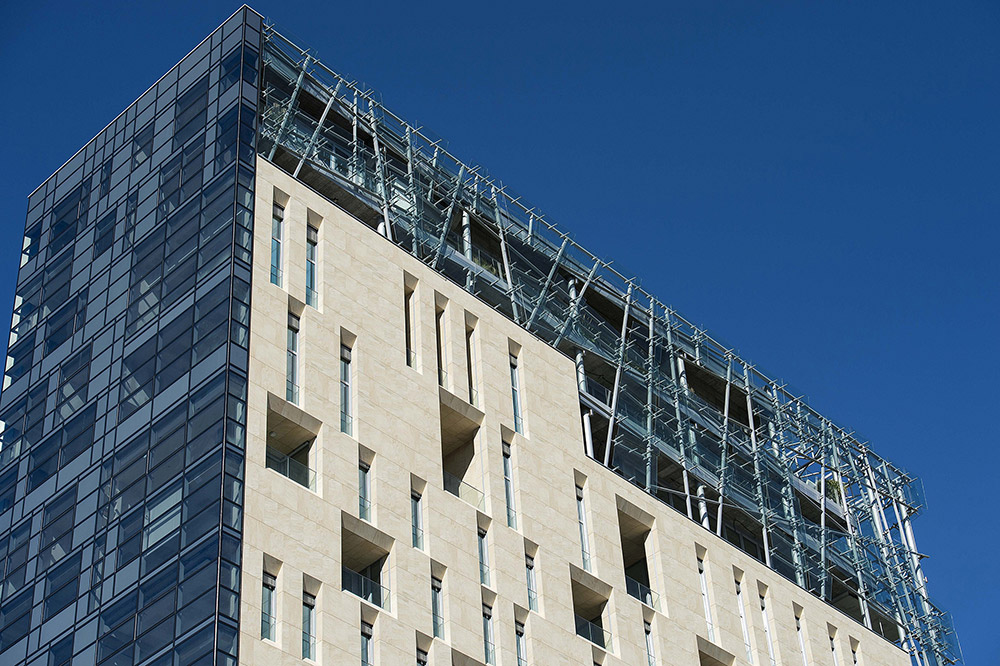

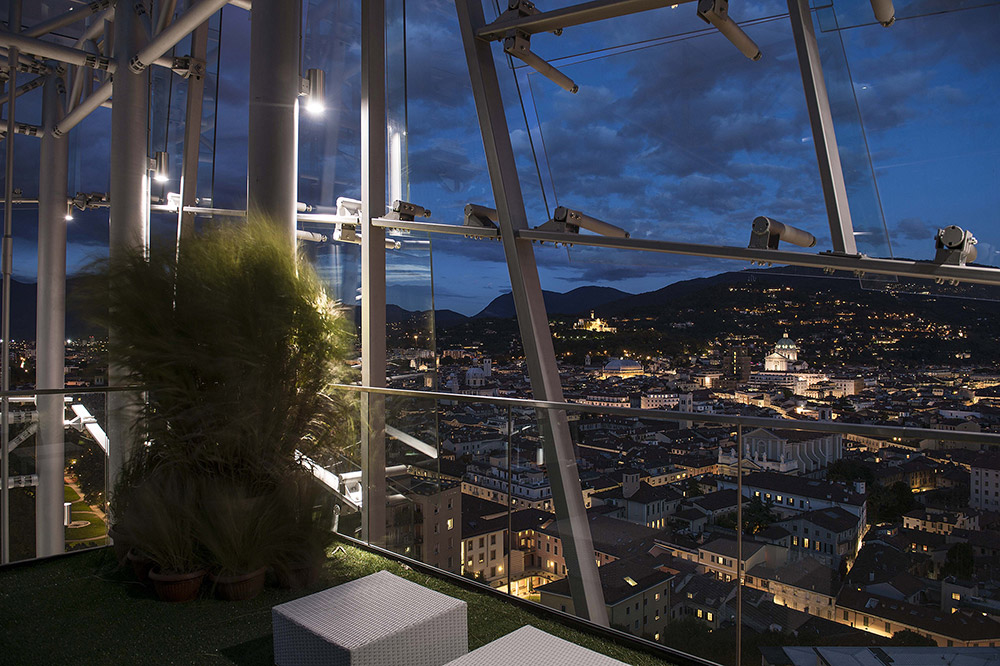

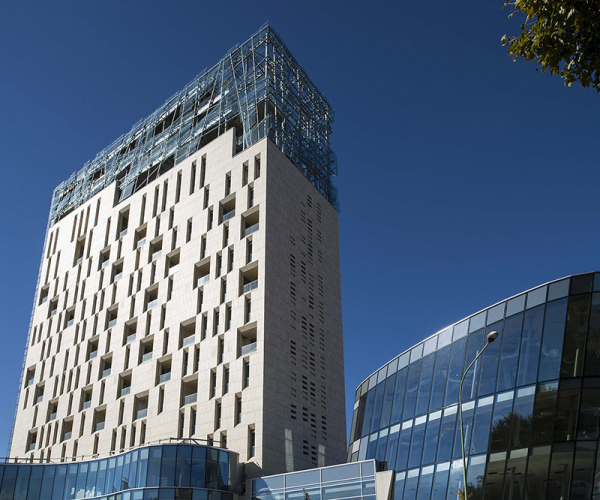

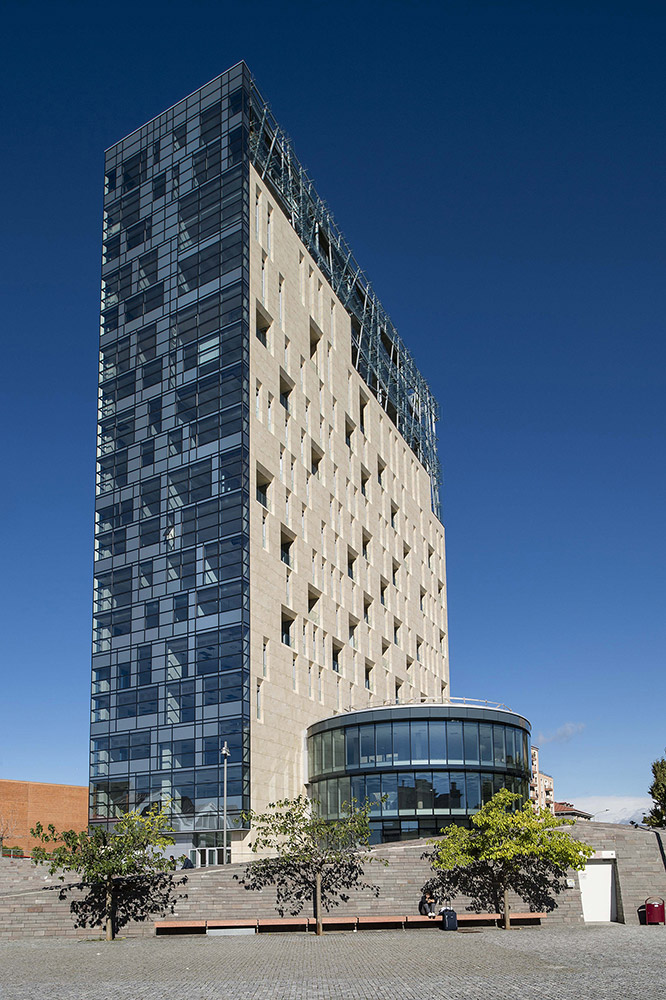

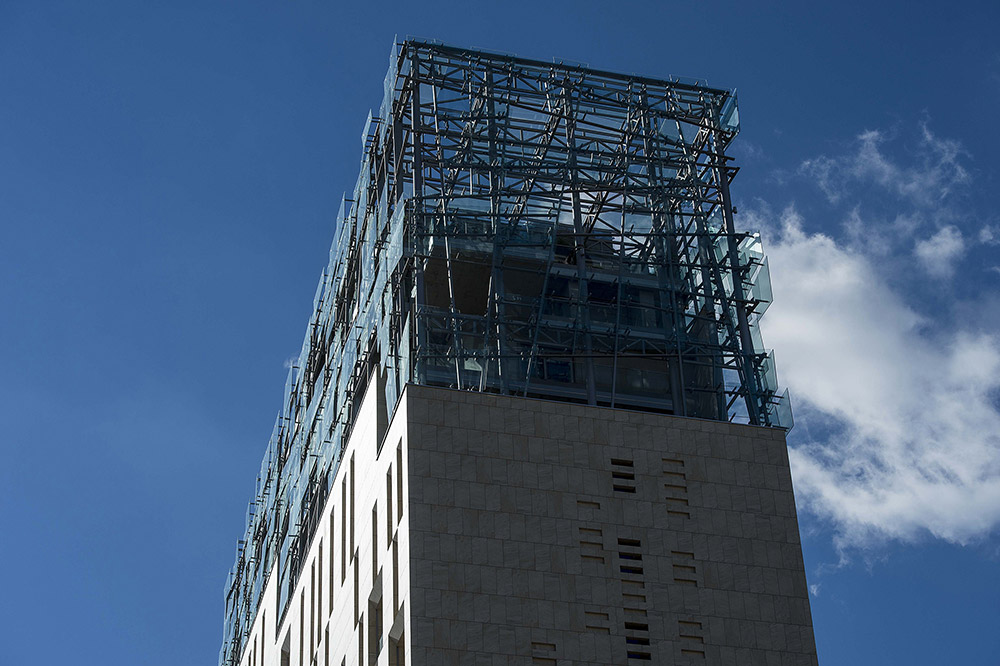

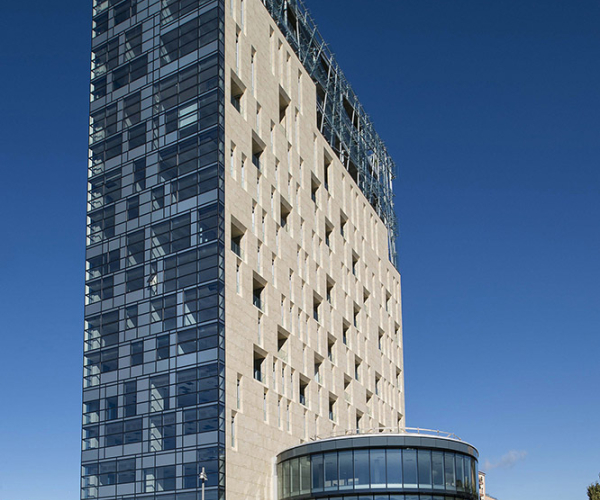

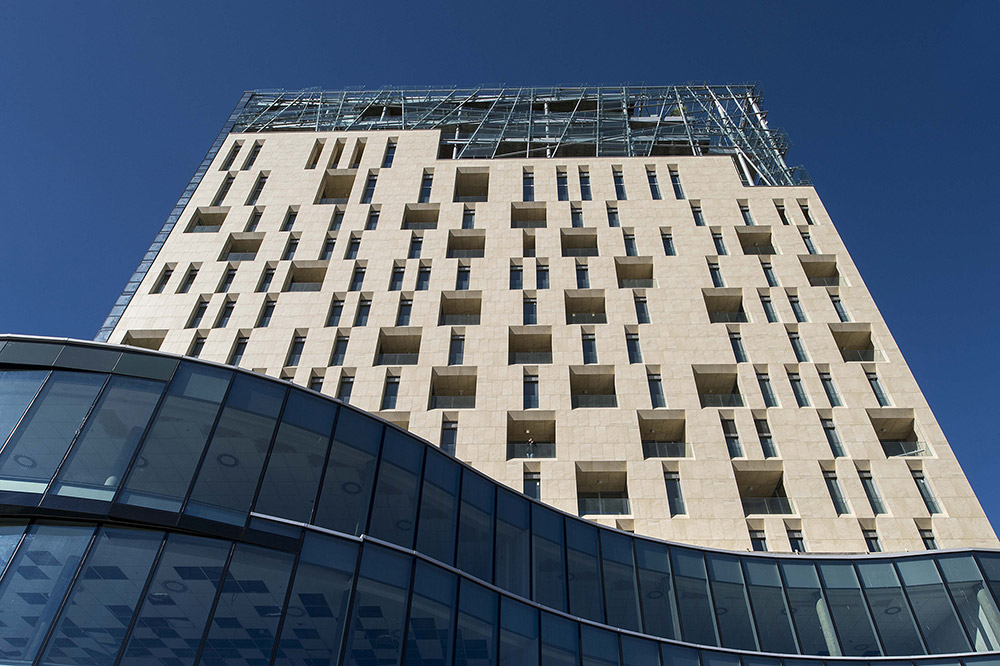

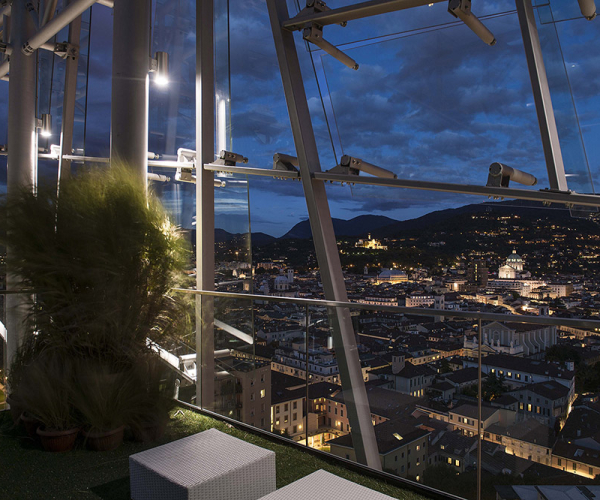

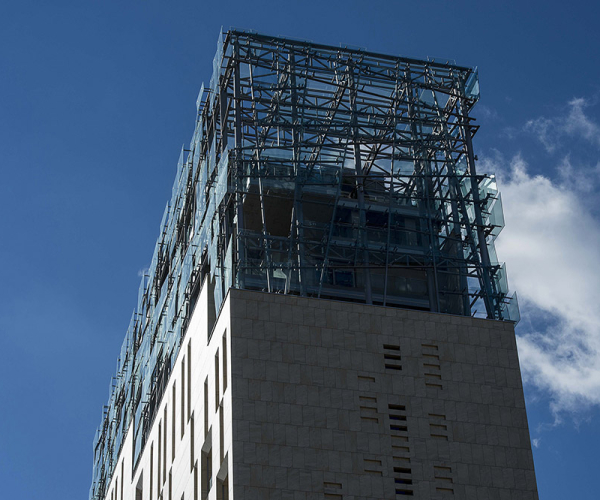

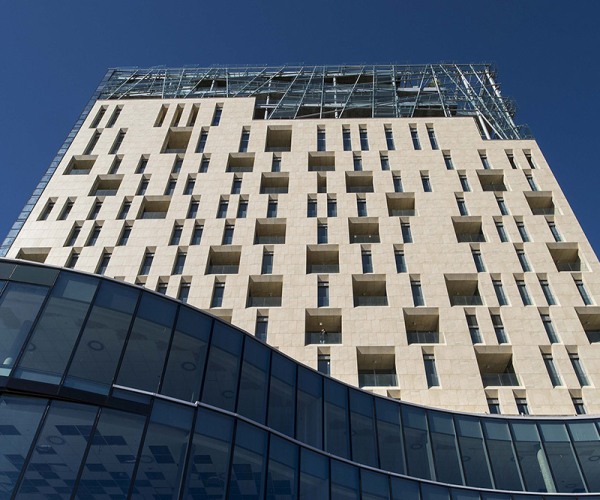

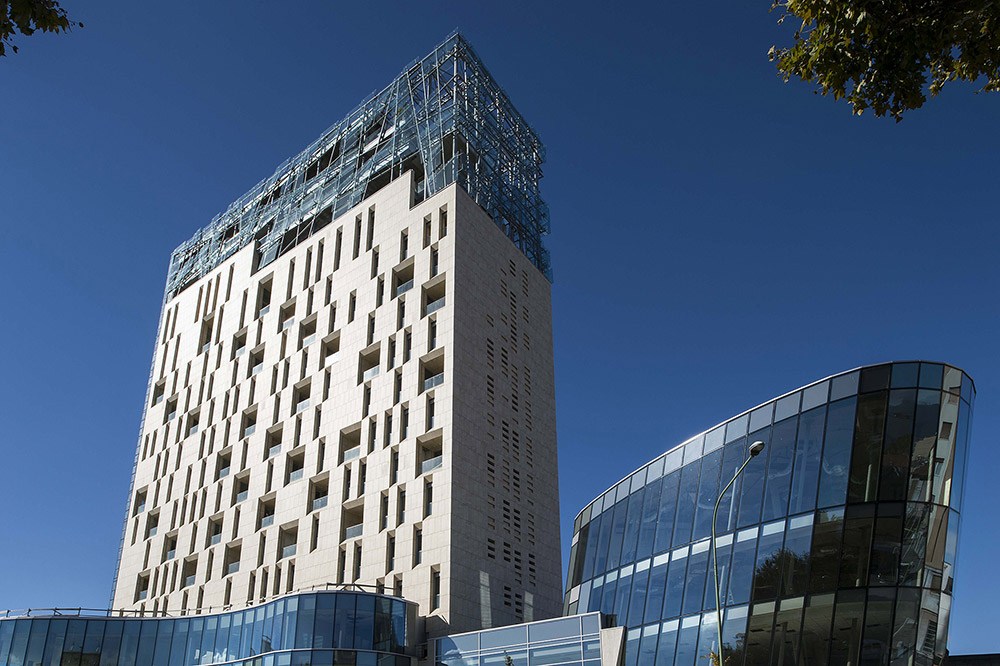

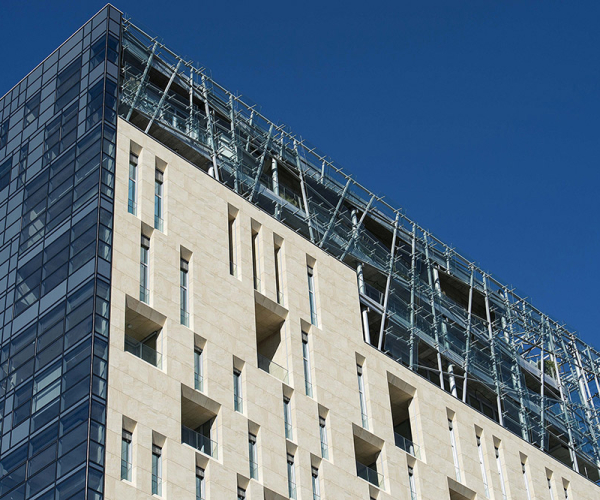

Residential tower: ETICS opaque facade with ceramic finish and windows with thermally broken aluminum framing; Glass balustrades, south elevation: Semi structural stick system curtain walling; Fire resistant spandrel panels; Outward opening infills. Shaped glass point load façade fixed on a steel structure for the last tree stairs. Commercial groundfloor: Semi structural stick system curtain walling with low-e insulated glass units.
FINAL USE: Residential and commercial
ARCHITECT: Studio di Architettura Maggiore
YEAR AND LOCATION: 2013, Italy
Gallery
---
Technical Drawings
---

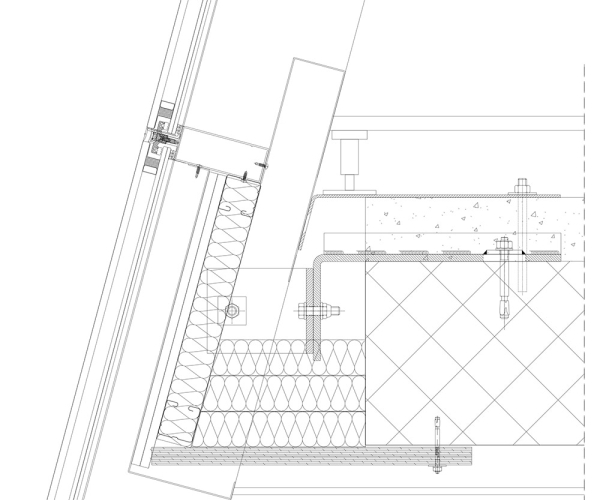

Vertical section of curtain walling – typical detail (basement): semi structural stick system curtain walling with low-e insulated glass units; fire stop panel at slab level. Steel fixing bracket anchored on the top of the slab.

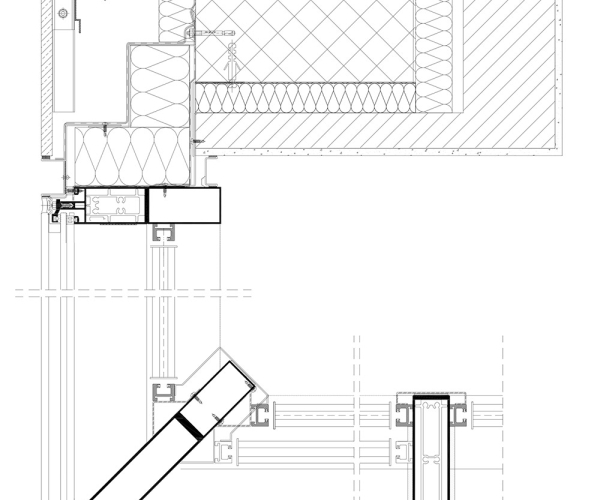

Horizontal section of South curtain walling – corner detail (residential tower): semi structural stick system curtain walling with insulated jamb in conjunction with opaque façade.

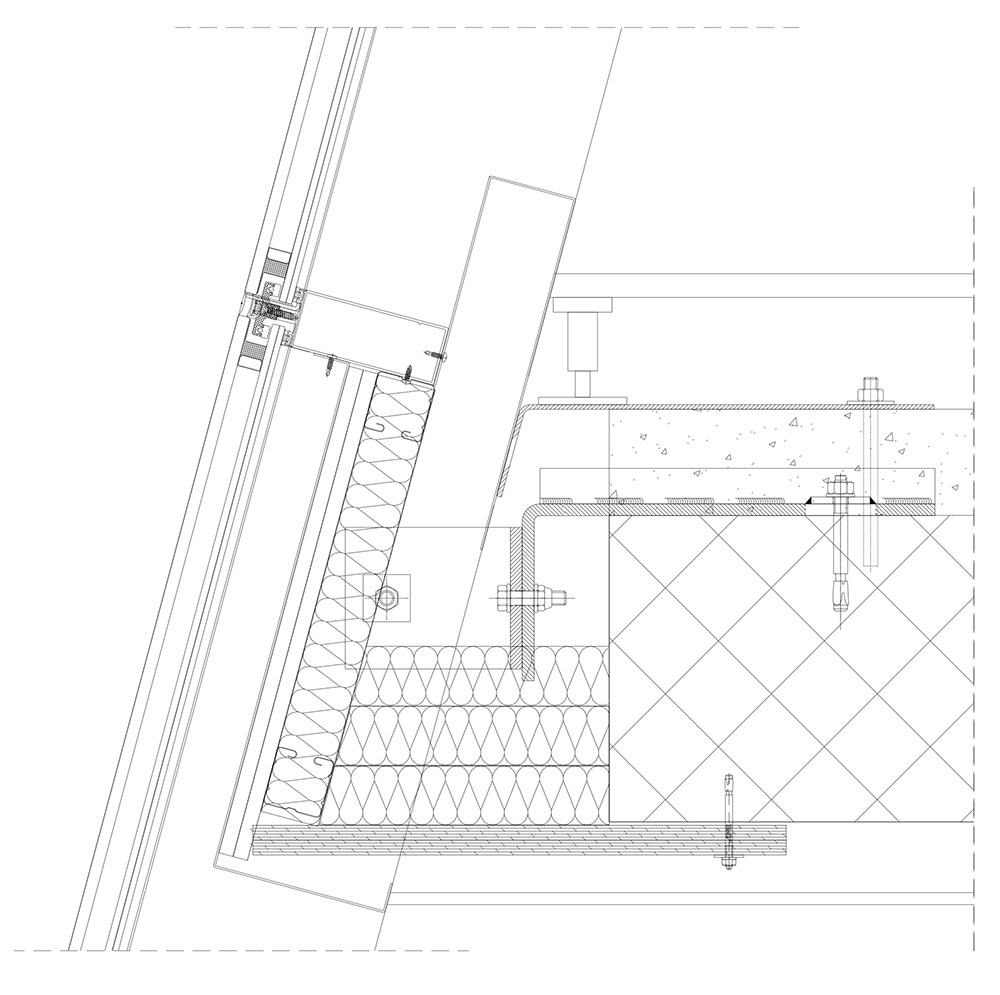

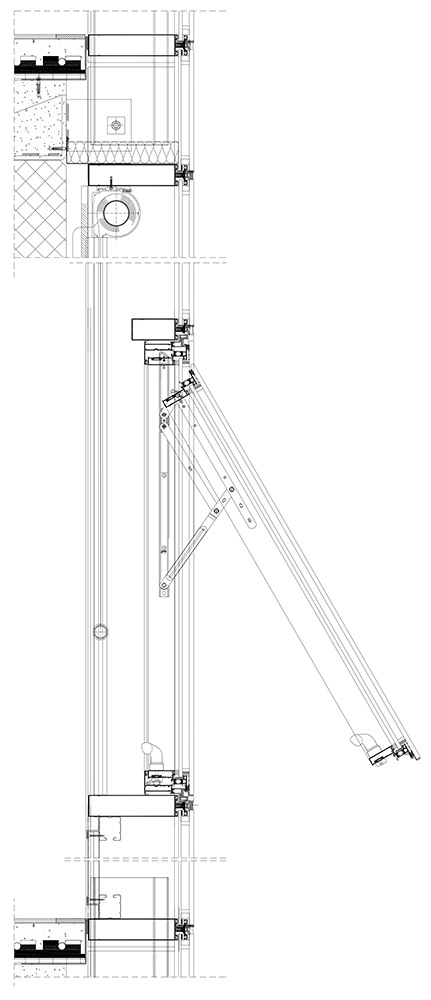

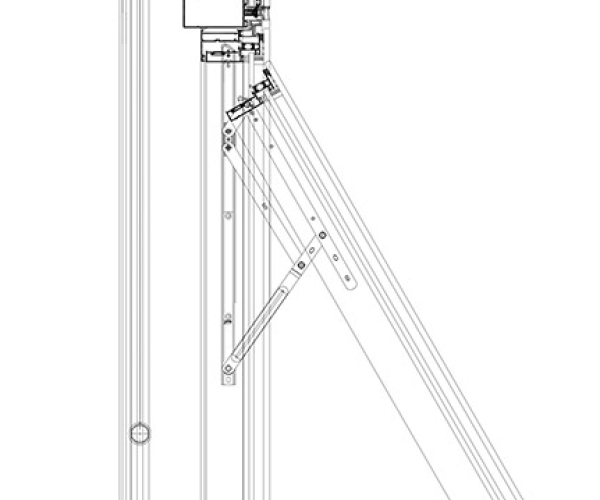

Vertical section of South curtain walling – typical detail (residential tower): semi structural stick system curtain walling with outward awning windows; insulated glass unit with low-e glazing, internal curtain; fire stop panel at slab level; spandrel panel glass with ceramic fritting.
